Applied Bolting Technology manufactures direct tension indicating (DTI) washers. These washers are used to get bolts installed to the correct TENSION, regardless of the bolt's torque resistance. Sizes are made to suit bolts from 1/2" to 1 1/2" and M16 to M36 diameter in several strength grades.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

WIND POWER ...................................................

.................... forget torque ~ get tension


Tens of millions of Squirter® DTI's have revolutionized the bolt-up process on power plants and other structural steel projects, making bolt installation and inspection easy and accurate. Now the Wind Power Industry is beginning to look at them also.

Watch for big M36 to M64 squirter® DTI’s made to suit the DIN 6914 bolt tensions in a wind generator shaft near you!

read more...

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SQUIRTER® DTIs ...................................................

.................... the best way to bolt!

SELF-INDICATING SQUIRTER® DTI

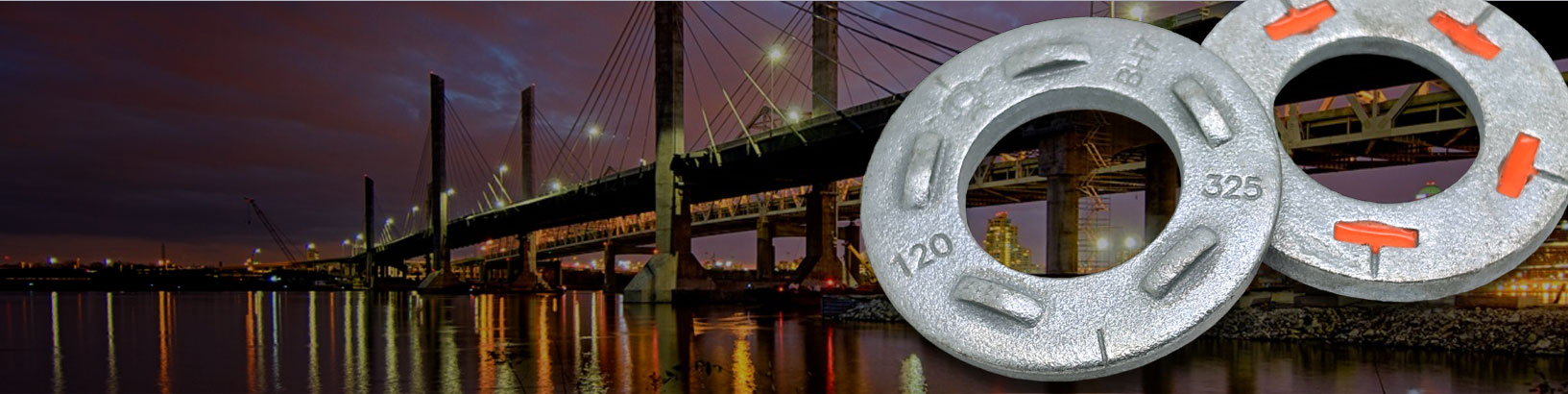

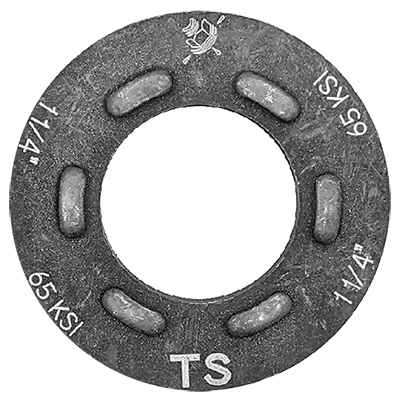

Self-indicating direct tension indicators, called Squirter® DTIs, are made to the same high quality standard and compression load resistance as our standard DTIs. Squirter® DTIs are simply regular DTI's with a flexible silicone embedded in the depressions under the bumps. As the bumps in the steel DTI washer are compressed by the action of tightening the bolt, the silicone is squirted out and becomes a visible indicator of correct bolt tension.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Direct Tension Indicators provide the high levels of bolting quality assurance needed for bridge, heavy construction, buildings, and Original Equipment bolting applications. The goal of our technology is to provide you the assurance that 100% of the minimum specified tension is achieved each time you tighten the bolt.

WHAT THE PROS SAY

"Applied Bolting's Squirter® DTI's are manufactured and certified to steel chemistry, dimensions, and bump compression performance requirements of ASTM F959. The self-indicating silicone feature of Applied's Squirter® DTI's has been added to the generic F959 DTI for the potential constructability benefit of the steel bolting crew and inspectors. Literally dozens of Bechtel Power, OG&C, and M&M projects have utilized Applied Bolting's Squirter® DTI's with success."

Dr. Peter J. Carrato, PE, SE, CEng
Principal Engineer and Fellow Bechtel Corporation

LATEST PROJECTS


OGD-III/AGD-II FEED in Abu Dhabi
Owner: Abu Dhabi Gas Industries.
EPC: Bechtel OG&C.
Location: 110 km from Persian Gulf
Squirter® DTIs: Approx. 400,000 each
