FLANGE
Single Stud Replacement / Hot Bolting DTIs
DuraSquirt® SSR DTIs (Single Stud Replacement/hot bolting DTIs) are single-use mechanical load cells that visually indicate when a specific stud stress has been achieved. Designed to be used during hot bolting operations, in accordance with ASME code: Hot bolting or SSR is the sequential removal and replacement of bolts on flange joints while under reduced operating pressure.

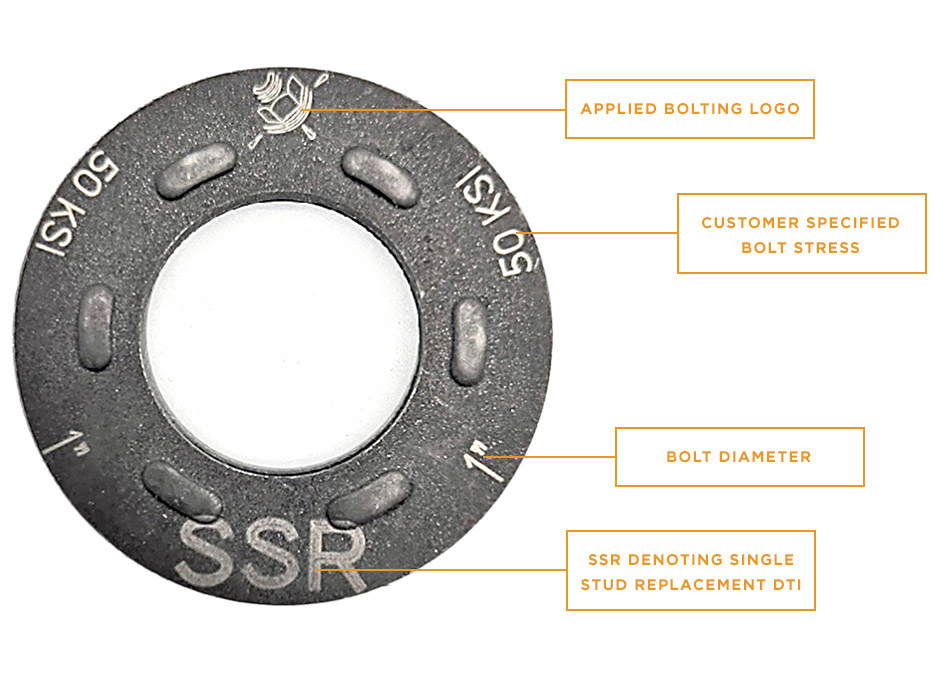

SSR DTIs are to be used anywhere a specific diameter of bolt is to be tightened to 35-80 ksi bolt stress. SSR DTIs are marked with bolt diameter, SSR designation, and ksi.
How It Works
DuraSquirt® Single Stud Replacement DTIs
Benefits
-
TIGHTEN STUDS TO DESIRED KSI WITH ANY TOOL, CALIBRATED OR NOT!
-
DURASQUIRT® SSR DTIS ARE AVAILABLE IN BOLT DIAMETERS FROM 3/4” UP TO 1-1/2”.
-
DESIGNED TO CLIENTS’ REQUIRED STUD STRESS FROM 35 KSI UP TO 80 KSI IN 5 KSI INCREMENTS.
-
THEY ARE NOT SPECIFIC TO A PARTICULAR FLANGE CLASS OR TYPE, GASKET OR SEAL.
Product Specifications
DuraSquirt® Target Stress DTI Line Card
| Stud Diameter(in) | ABT Part # | # DTIs/Keg | Wt/Keg(lbs) | Instructions |
|---|---|---|---|---|
| 3/4" | ABT-TS034BP | 500 | 33 | |
| 7/8" | ABT-TS078BP | 400 | 39 | |
| 1" | ABT-TS100BP | 300 | 36 | |
| 1 1/8" | ABT-TS118BP | 225 | 35 | |
| 1 1/4" | ABT-TS114BP | 175 | 36 | |
| 1 1/2" | ABT-TS112BP | 125 | 36 | |
