Overview

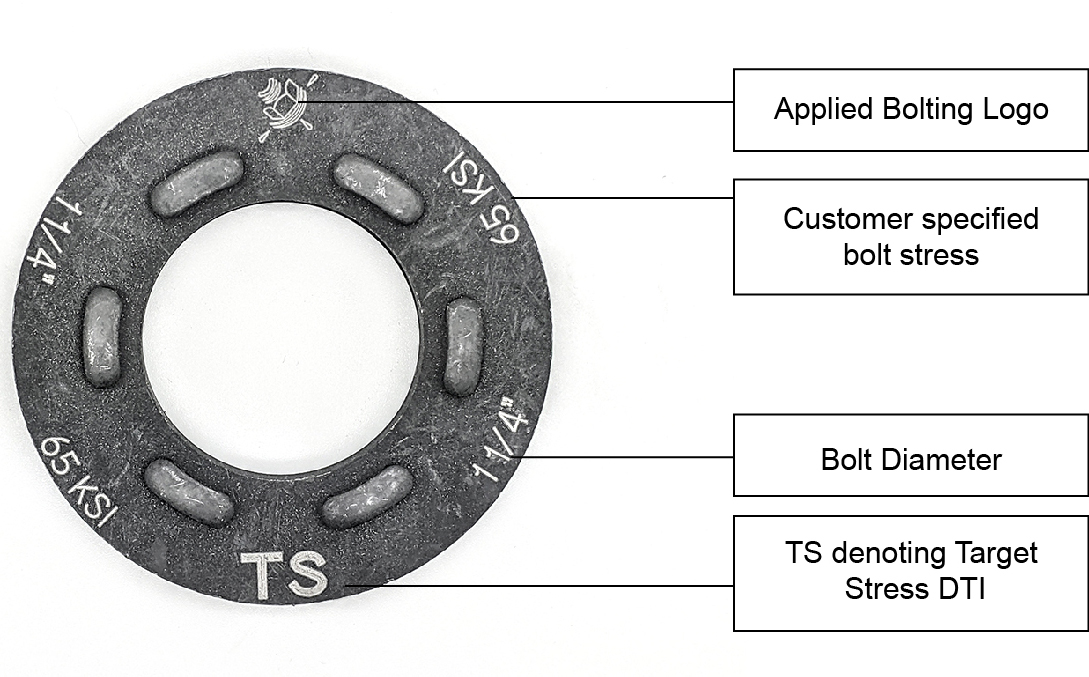

DuraSquirt^® Target Stress Direct Tension Indicating Washers are designed to be used as verification devices when torquing bolted flange joint assemblies. They are single use mechanical load cells that visually indicate when a specific bolt stress has been achieved.

Using your existing fasteners, torquing pattern and tools, the DuraSquirt^® Target Stress DTIs will let you know if your torque generated the desired stud stress, and a visual marker that the flange has been completed as required.

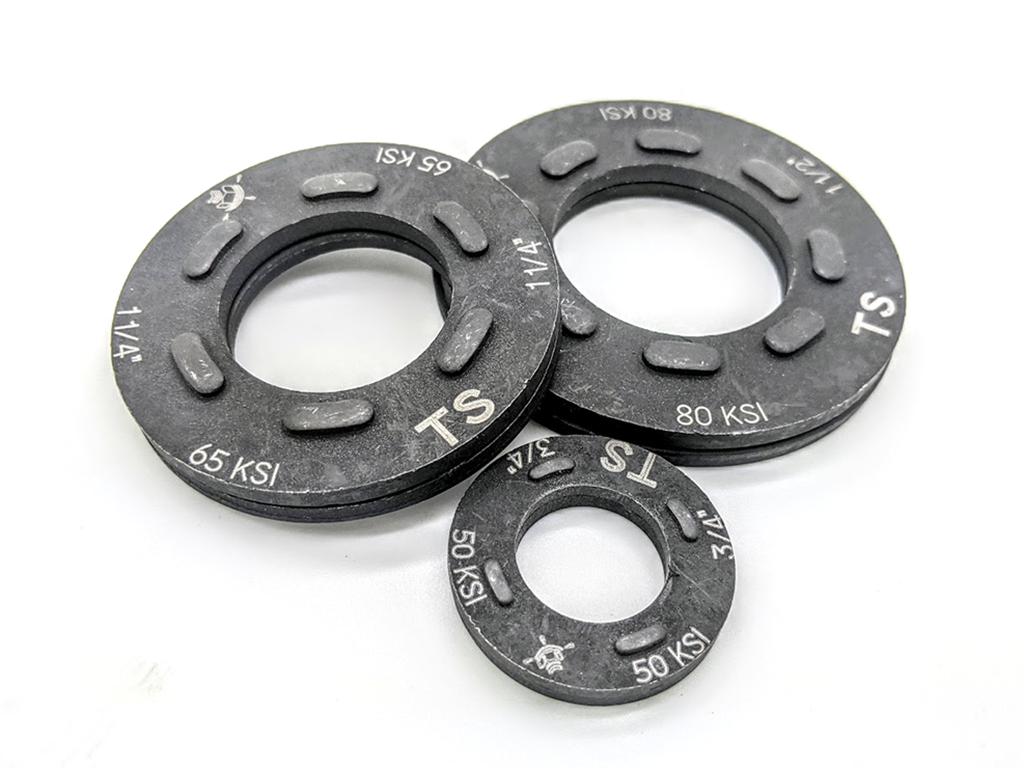

DURASQUIRT^® TARGET STRESS DTIS ARE AVAILABLE IN BOLT DIAMETERS FROM 3/4” UP TO 1-1/2”.

DESIGNED TO CLIENTS’ REQUIRED STUD STRESS FROM 35 KSI UP TO 80 KSI IN 5 KSI INCREMENTS.

THEY ARE NOT SPECIFIC TO A PARTICULAR FLANGE CLASS OR TYPE, GASKET OR SEAL.

Product Specifications

DuraSquirt^® Target Stress DTI Line Card

Stud Diameter(in)	ABT Part #	# DTIs/Keg	Wt/Keg(lbs)
3/4"	ABT-TS034BP	500	33
7/8"	ABT-TS078BP	400	39
1"	ABT-TS100BP	300	36
1 1/8"	ABT-TS118BP	225	35
1 1/4"	ABT-TS114BP	175	36
1 1/2"	ABT-TS112BP	125	36

Check Out Our Related Products

Looking for an even easier flange install?

Our DuraSquirt^® DTI Single Pass Flange System is 70% faster than legacy methods.

Click here to learn more.
